Thermo Insulation Tape

Home Products Thermo Insulation Tape
INSULATION ACCESSORY

Thermo Insulation Tape

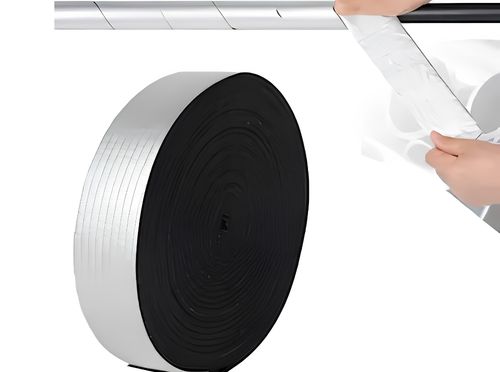

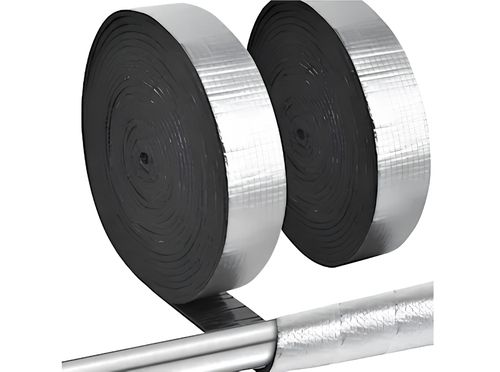

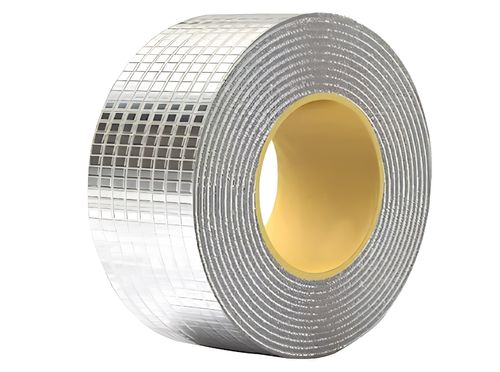

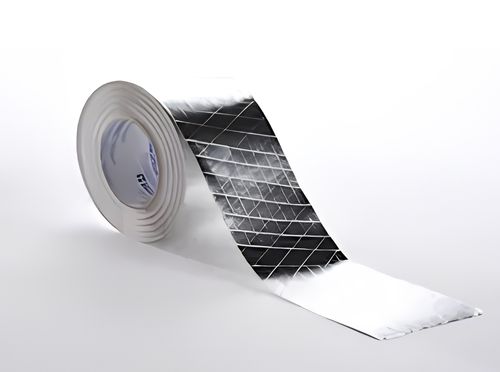

Insulation Foam & Foil Tape is a high-performance sealing and insulation accessory designed for joining, sealing, and finishing insulation systems. It is manufactured using closed-cell PE / XLPE foam or aluminium foil with strong adhesive backing, ensuring excellent thermal insulation, air sealing, and vapour barrier performance. Widely used in HVAC ducts, insulation joints, pipe wrapping, roofing insulation, and industrial applications, foam tape provides cushioning, gap filling, and vibration absorption, while foil tape offers superior reflectivity, heat resistance, and moisture sealing. Together, they help improve insulation efficiency, prevent air leakage and condensation, and enhance the durability and appearance of insulation installations.

More About Our Products

Key Features & Technical DataSheet

  • 🧱 Closed-Cell Foam Structure: Provides effective thermal insulation and air sealing.
  • ✨ High Reflectivity (Foil Tape): Reflects radiant heat and improves energy efficiency.
  • 💧 Moisture & Vapor Barrier: Prevents condensation and water ingress.
  • 🧲 Strong Adhesive Backing: Ensures quick, secure, and long-lasting bonding.
  • 🔧 Easy Peel & Stick Application: Reduces installation time and labor effort.
  • 🛡️ Durable & Tear Resistant: Withstands handling, temperature variations, and aging.
  • 🌡️ Wide Temperature Resistance: Suitable for HVAC, refrigeration, and industrial use.
  • 🔇 Vibration & Noise Dampening: Helps absorb vibrations and reduce noise.
  • 🌱 Clean, Safe & Eco-Friendly: Non-toxic, fiber-free, and hygienic material.
Property Typical Value
Base Material PE / XLPE Foam / Aluminium Foil (as per type)
Adhesive Type Synthetic Rubber / Acrylic
Release Liner Siliconized Paper / Film
Total Thickness 3 – 10 mm
Adhesive Thickness 40 – 80 micorn
Density (Foam Type) 25 – 33 kg/m³
Tensile Strength ≥ 15 N/25mm
Elongation at Break ≥ 100 %
Peel Adhesion (to Steel) ≥ 10 N/25mm
Shear Strength ≥ 24 hours
Temperature Resistance -20°C to +90°C
Thermal Conductivity (Foam Type) 0.032 – 0.040 W/m·K
Water Resistance Excellent
Flame Retardancy (Optional FR Grade) Available
Standard Width 25mm / 50mm / Custom
Roll Length 10m / 20m / Custom
Color Black / Grey / Silver
WHERE IT IS USED

Area of Application

We're continually working to change the way people think about and engage with our products.

Cold Storage & Refrigeration Insulation

Used for sealing insulation joints in cold rooms, freezer panels, and refrigeration systems to prevent thermal leakage and condensation.

Electrical Panels & Enclosures

Helps in thermal management and dust/moisture sealing.

Automotive & Transport Applications

Provides sealing, vibration damping, and thermal protection.

Insulation Panel & Foam Joints

Ensures tight bonding between insulation boards and sheets.

HVAC Duct Sealing

Seals joints and seams to prevent air leakage and energy loss.

Pipe Insulation Wrapping

Used for joint sealing and finishing of insulated pipes.

Industrial Equipment Insulation

Used for machinery, ducts, and process equipment sealing.

Roof & Wall Insulation Systems

Acts as a vapor barrier and improves insulation continuity.

Packaging & Protective Sealing

Offers cushioning and reflective protection for sensitive goods.
